High Current On/Off Mini Switch

Switch used A x1000.png
Switch used B x1000.png
Switch used A x1000.png
Switch used B x1000.png

High Current On/Off Mini Switch

$37.50

*Color may vary based on availability. This will have no effect on performance.*

Manually disconnect high current lines. This switch is typically used between a combiner box and a charge controller, or between a battery bank and an inverter.

Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Maximum Voltage: 48Vdc

Dimensions: 2 7/8"H x 2 7/8"W x 3 1/4"D

Quantity:
Add To Cart

You may also be interested in:

4/0 Lug 3/8
4/0 Lug 3/8"
$4.00

For use with 4/0 cable on 3/8" posts

Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter) Heat Shrink, Pre-Cut (B & R, Assorted Diameter)

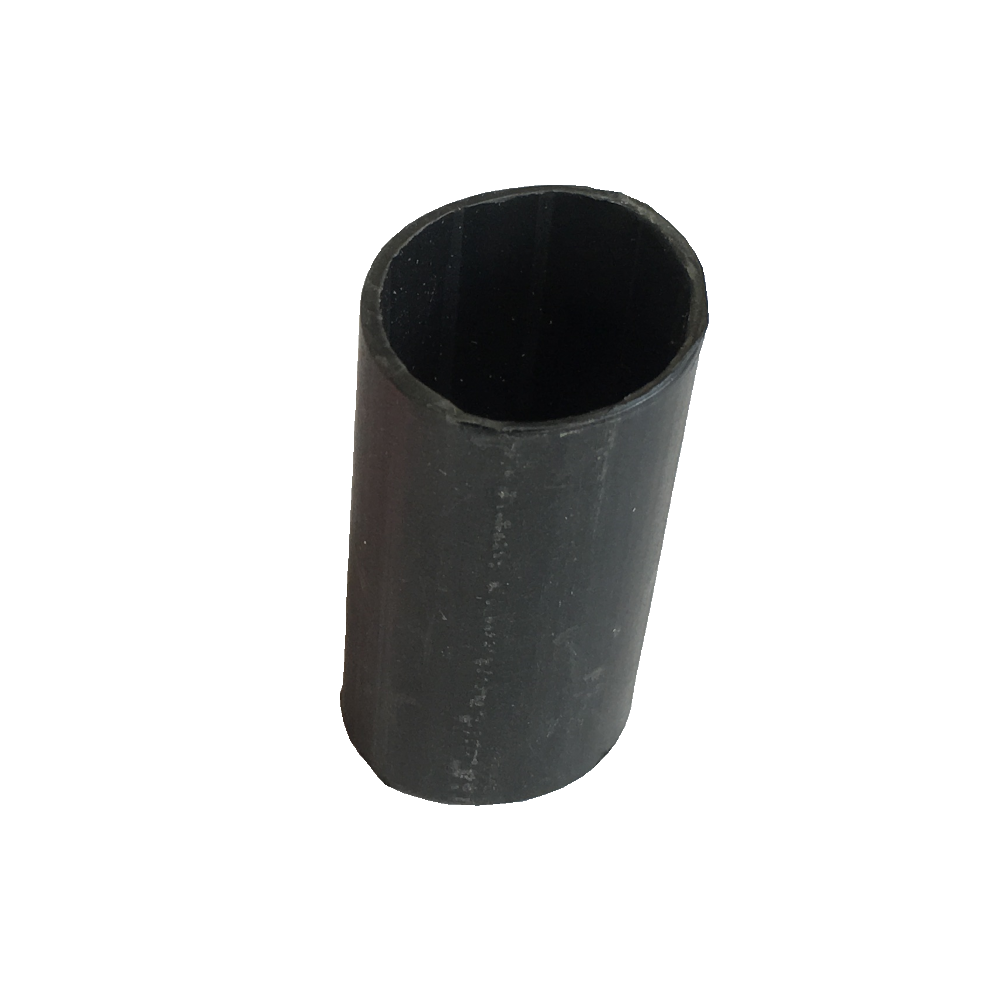

Heat Shrink, Pre-Cut (B & R, Assorted Diameter)
$2.25

Used to clean up and mark positive/negative cable ends.

Recommended Heat Shrink Diameter for given Wire/Lug Gauge:

3/4" HD: 1/0, 2/0, 3/0, 4/0

1/2" HD: 2GA, 4GA,

1/2" DW: 6GA, 8GA

1/4" DW: 10GA

1/8" DW: 18GA

Cable-4/0
Cable-4/0
$9.00

Typically used between the battery bank and a 2000W or larger inverter

Sold by the foot



AM Solar Part Number:  93S-MINI, SWITCH-MINI 6006, Blue Sea Marine Battery Switch (mini on/off) blu6006
