Fuses, Breakers, Fuse Holders, Sub Panels
Fuse Holders
Fuses
Fuse Blocks
Sub Panels (Breaker Boxes)
AC Breakers
DC Breakers
Fuse Holders
Fuse holders house the fuses between the battery bank and DC loads or charging sources.
Class T Fuses are used as circuit protection between battery banks and inverters or alternators.
Dimensions: H 2.4" x W 7.1" x D 2.0"
ANL Fuses are used as circuit protection between battery banks and inverters or alternators.
Dimensions: 3 x 9 x 7.25 inches
Cover included
Accepts 5/16" (M8) ring terminals
For use on systems up to 32 Volts DC
Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
Base Material: Reinforced Polycarbonate
Maximum Cable Size:4/0 AWG
ATC Fuses are commonly used in automotive applications between the battery bank and DC loads like lights and fans.
Mini fuses are used for circuit protection between battery banks and some system control or monitoring components.
Maxi Fuses provide circuit protection typically between a charge controller or small inverter and a battery bank
Fuses
Fuses provide circuit protection between the battery bank and a load or charging source. Class T fuses provide circuit protection between the battery bank and the inverter. They are also sometimes used between an alternator and a battery bank.
Inverter Rating / Fuse: >1500W - 110A, 1500W - 200A, 2000W - 300A, 3000W - 400A
A spare fuse is recommended with with the purchase of a fuse & holder.
Maxi fuses are typically used for charge controllers or smaller inverters. ATC fuses are used for DC loads. Mini fuses are typically used for small system components like Battery Management Systems or monitors.
Class T Fuses are used as circuit protection between a battery bank and an inverter.
ATC Fuses are commonly used in automotive applications between the battery bank and DC loads like lights and fans.
Fuse Kits
Fuse Blocks
Fuse Blocks house the DC fuses between DC loads and the battery bank.
Compact ATO/ATC fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
Can be used for 24-hour circuits
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATC and ATO fast acting blade fuses
Includes protective cover
Number of Circuits: 6
Mounting: (4) M4 Screws (Included)
Positive Bus Input Post: #10-32 stud
Negative Bus Input Post: #10-32 stud
Operating Voltage: 32V DC
Amperage Maximum Operating (per circuit) 30 Amps
Amperage Maximum Operating (per block) 100 Amps
Screw Terminals: #8-32 scews with flat washer and lock washer
Negative Bus: Yes
LED Blown Fuse Indicator: Yes
Polycarbonate base and cover material for rugged lightweight construction
Dimensions (L x W x H): 3.46 x 3.46 x 1.44 in
Fuses sold separately.
Compact ATO/ATC fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
Can be used for 24-hour circuits
Tin-plated copper buses and fuse clips
Accepts ring or spade type terminals
Accepts ATC and ATO fast acting blade fuses
Includes protective cover
Number of Circuits: 12
Mounting: (4) M4 Screws (Included)
Positive Bus Input Post: #10-32 stud
Negative Bus Input Post: #10-32 stud
Operating Voltage: 32V DC
Amperage Maximum Operating (per circuit) 30 Amps
Amperage Maximum Operating (per block) 100 Amps
Screw Terminals: #8-32 scews with flat washer and lock washer
Negative Bus: Yes
LED Blown Fuse Indicator: Yes
Polycarbonate base and cover material for rugged lightweight construction
Dimensions (L x W x H): 5.44 x 3.46 x 1.44 in
Fuses sold separately.
Sub Panels (Breaker Boxes)
The breaker boxes house the breakers in the Main and Sub panels of an inverter/charger system. The 50A sub panel is recommended for 3000W or larger inverters.
AC Distribution panel for 30A shore power systems
Dimensions: H 2.6" x W 3.0" x D 6.9"

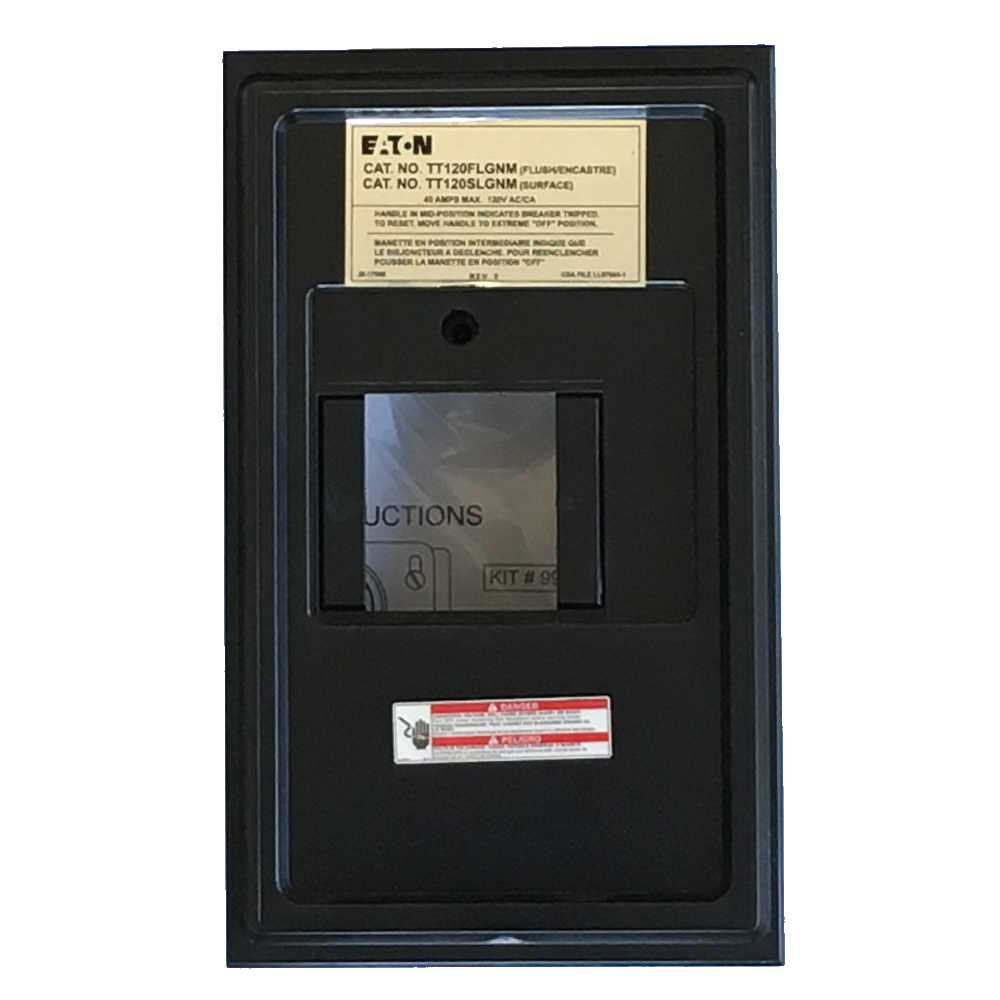

Breaker box for AC distribution, Rated for 40A. This box accommodates 3 x 1" wide single pole or double pole (tandem) breakers. Our most popular selection is 30/15, 15/20, 15/15. This provides for a 30A input from the inverter and 3 x 15A & 1 x 20A load circuits.
Dimensions: H 8.6" x W 5.0" x D 3.4"
Breaker box for AC distribution, Rated for 40A. This box accommodates 3 x 1" wide single pole or double pole (tandem) breakers. Our most popular selection is 30/15, 15/20, 15/15. This provides for a 30A input from the inverter and 3 x 15A & 1 x 20A load circuits.
AC Load Center w/ 2 x 50A legs
Dimensions: 11.7″ W x 9.2″ H x 4.1″ D
Cut-out Size: 10.5″ W x 7.5″ H
Weight: 2 lbs.
AC Breakers
AC Breakers are located in the Main panel and Sub panel of an inverter/charger system
AC Breakers for Eaton box
Siemens breaker for AC distribution sub panel. Currently these breakers are only sold as part of larger kits. For questions or custom quotes, please call (541) 726-1091.
Slim AC Breakers for GE box
GE slim breaker for AC distribution sub panel. Currently these breakers are only sold as part of larger kits. For questions or custom quotes, please call (541) 726-1091.
Duplex AC Breakers for Eaton box
Siemens breaker for AC distribution sub panel. Currently these breakers are only sold as part of larger kits. For questions or custom quotes, please call (541) 726-1091.
DC Breakers
DC Breakers are typically used between a charge controller and a battery bank, but can also be used between a battery bank and an inverter or alternator. When designing a solar charging system, select a breaker rated just above the current rating of the charge controller.
Because of Direct Current's tendency to arc when disconnected, special breakers are needed. These DC breakers are ideally used between charge controllers and battery banks and on alternator or small inverter lines.
Dimensions: H 1.8" x W 2.3" x D 3.5"
DIN-mount breakers fit MidNite Solar enclosures & array combiners. These breakers are polarized, so the positive wire from the power source needs to be connected to the "+" side of the breaker. The maximum PV array voltage must not exceed the voltage rating of the breakers used (150VDC).
These breakers are rated to break the full rated load at the rated voltage repeatedly, with NO DAMAGE. Always use a properly sized breaker for disconnecting.
POLARIZED
Environmental Rating - Type 1 (Indoor)
DC Voltage Rating - 150VDC
Wire Size Range - 14 to 6 AWG
Width - 0.5 inches (13mm)
Number of poles - 1
Listed for US & Canada when used in MidNite Solar enclosures
10,000 AIC
Breaker Torque Value: 20 In-Lbs (2.3NM)
*Color may vary based on availability. This will have no effect on performance.*
Manually disconnect high current lines. This switch is typically used between a combiner box and a charge controller, or between a battery bank and an inverter.
Continuous Rating: 300A
Intermittent Rating: 500A (5 min)
Maximum Voltage: 48Vdc
Dimensions: 2 7/8"H x 2 7/8"W x 3 1/4"D
Manually disconnect high current lines. This switch is typically used between a battery bank and an inverter.
We recommend this with the 3000VA Victron Inverter systems. This switch is slightly larger and with a higher current rating than the High Current On/Off Mini Switch (6006). We recommend using this switch with 3000VA inverters because of the larger contact areas within the switch when compared to the 6006.
The 5000VA 12V inverters would need a more heavy-duty switch.
Specifications:
Continuous Rating: 350A
Intermittent Rating: 600A (5 min)
Maximum Voltage: 48Vdc
Dimensions: 3 7/8"H x 3 7/8"W x 3"D
