Victron 85A Solar Charge Controller Kit (Aprox. 1250W @ 12V)
Victron 85A Solar Charge Controller Kit (Aprox. 1250W @ 12V)
This kit is built around a Victron SmartSolar MPPT 150|85 charge controller and comes with built-in bluetooth monitoring that can communicate with a smart phone. It is also compatible with several optional add-on monitoring kits. It can regulate up to 1250 watts of solar panels in optimal conditions (more in higher latitudes) and is compatible with our roof mounted combiner boxes. Thick 2 gauge wire reduces lines losses for optimum efficiency. This system core is the preferred choice for our lithium battery systems, but it is also fully compatible with lead-acid battery banks.

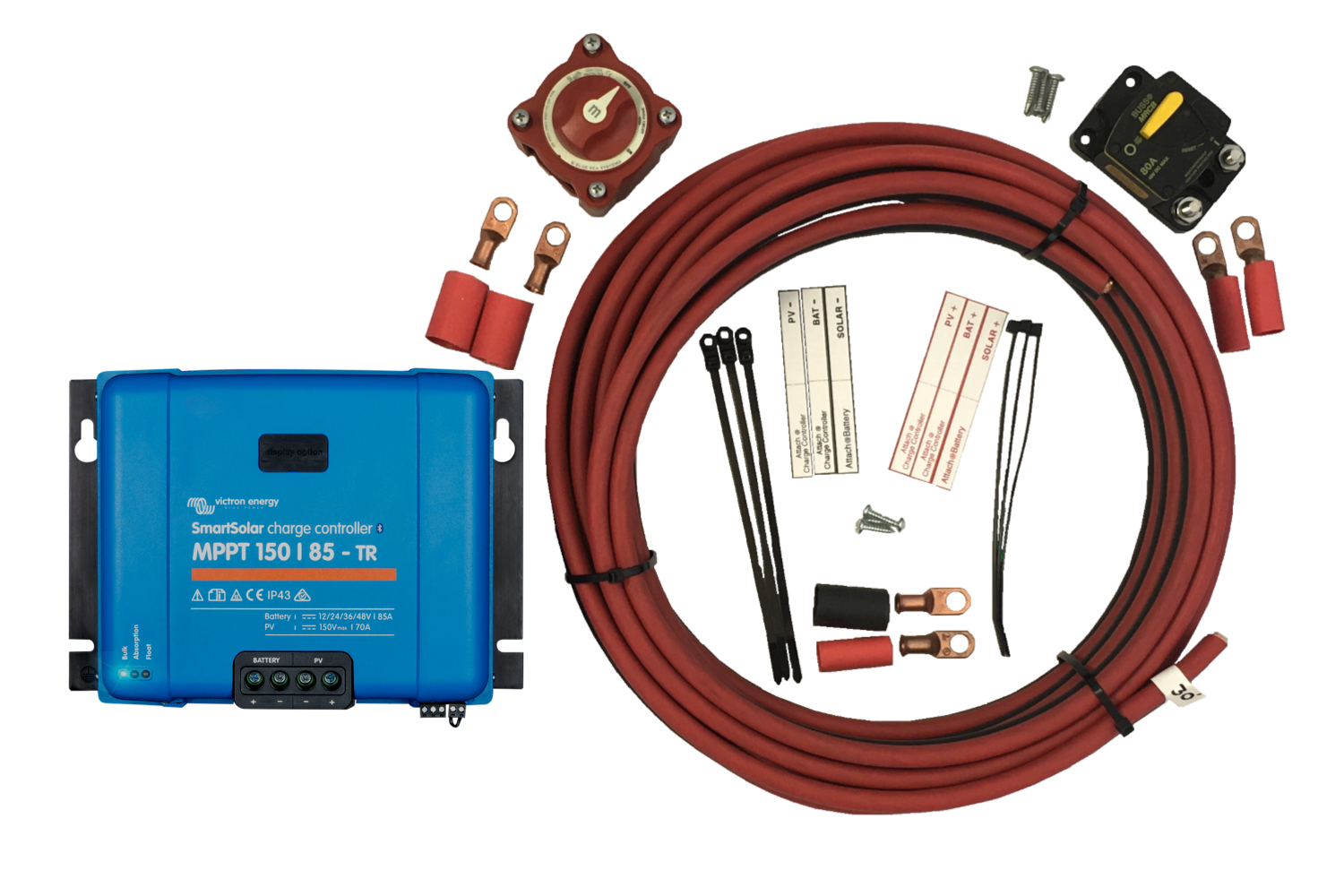

What you get:
1x CCTLR-VT-MPPS-085CAN SCC115085410 VE BlueSolar Smart MPPT 150/85-Tr VE.Can
30' CABLE-2GA-2-GRY Duplex-2/2
1x 92C-INTR Interior Wire Harness Acc. Kit
1x 93B-100A 100 Amp DC Brkr. w/Screws
1x 93T-POS-2GA 2ga Brkr Pos Term Kit
1x 93T-NEG-2GA 2ga Negative Terminal Kit
1x 93S-MINI Switch-Mini On/Off w/Screws
2x LUG-2GA-RING-3/8 2 ga. Lug-3/8" Ring
3" HS-RED-HD-1/2 Heat Shrink 1/2" Red
This is the ultra high power end of our Victron SmartSolar MPPT based System Core offerings. To complete a system based on this Core, study this System Overview. You will see that you need to add a Combiner Box and Solar Panel Kits. You may also choose to add Tilt Bars for increased output in Winter and a tube or two of Dicor sealant to seal the roof where the mounting feet and roof combiner box are placed.
Select a system monitor and choose from the optional add-ons list below to build your complete system
This kit provides a remote monitor with programming capability for Victron MPPT charge controllers.
The Color Control GX provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more. This kit is not a battery monitor, but it does talk to battery monitors.
Battery monitor kit with programmable relay. Measures voltage, current, capacity, and temperature. Can work with any battery type. Built-in Bluetooth. Compatible with the Color Control Monitor.
The BMV-712 is Victron's newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery. Compatible with all battery types. Built-in Bluetooth.
Monitor Dimensions: H 1.3" x W 2.4" x D 2.4"
Shunt Dimensions: H 1.4" x W 4.8" x D 1.6"
Cable Length: 10m
You may also be interested in:
Choose a combiner box:
Choose panel kits:
Choose appropriate tilt bar sets:
Add sealant:
(allow 1/3 tube per panel or Roof C-Box)
AM Solar Part Number: 30s-VT-MPP-85A
