This is the most sophisticated AM Solar installation ever. The 1920W solar array was producing over 90A when the system was first activated (in overcast weather). That high current, coming from dual 70A charge controllers, was fed onto a Victron 800Ah lithium battery bank where a 3000VA hybrid inverter would power all the comforts of home to this power plant on wheels.
Equipment Added:
12x SF160 Solar Panels
2x Roof C-Boxes
1x 19.5" tilt bar set
2x SunRunner Victron MPPT 70A system cores
1x Victron Multiplus 3000VA Inverter Kit
1x Victron 800Ah Signature Lithium Battery Bank
1x Progressive Ind. 50A Surge Protector w/display
1920W of solar

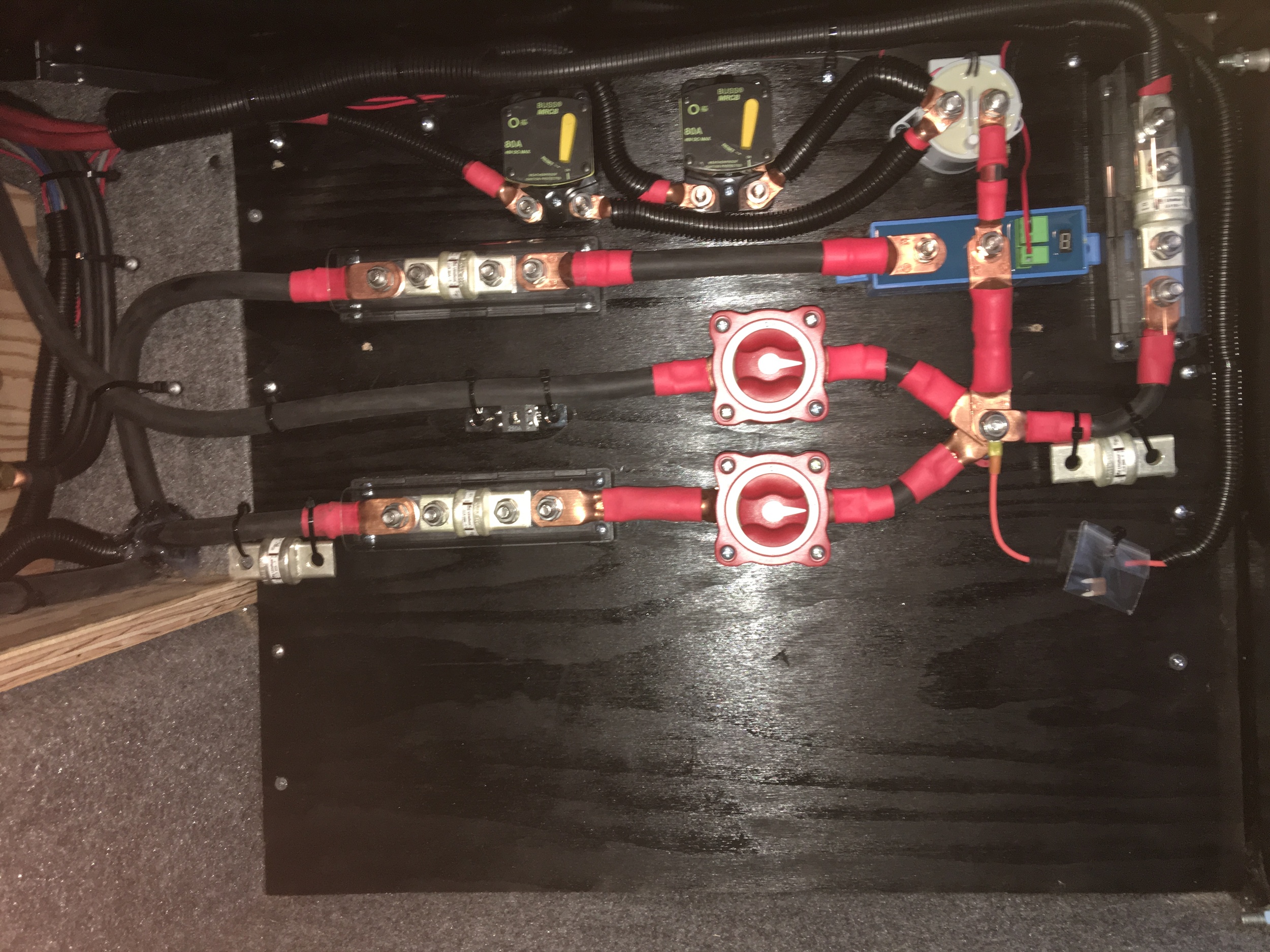

Class T fuses and high current switches
AC Wiring

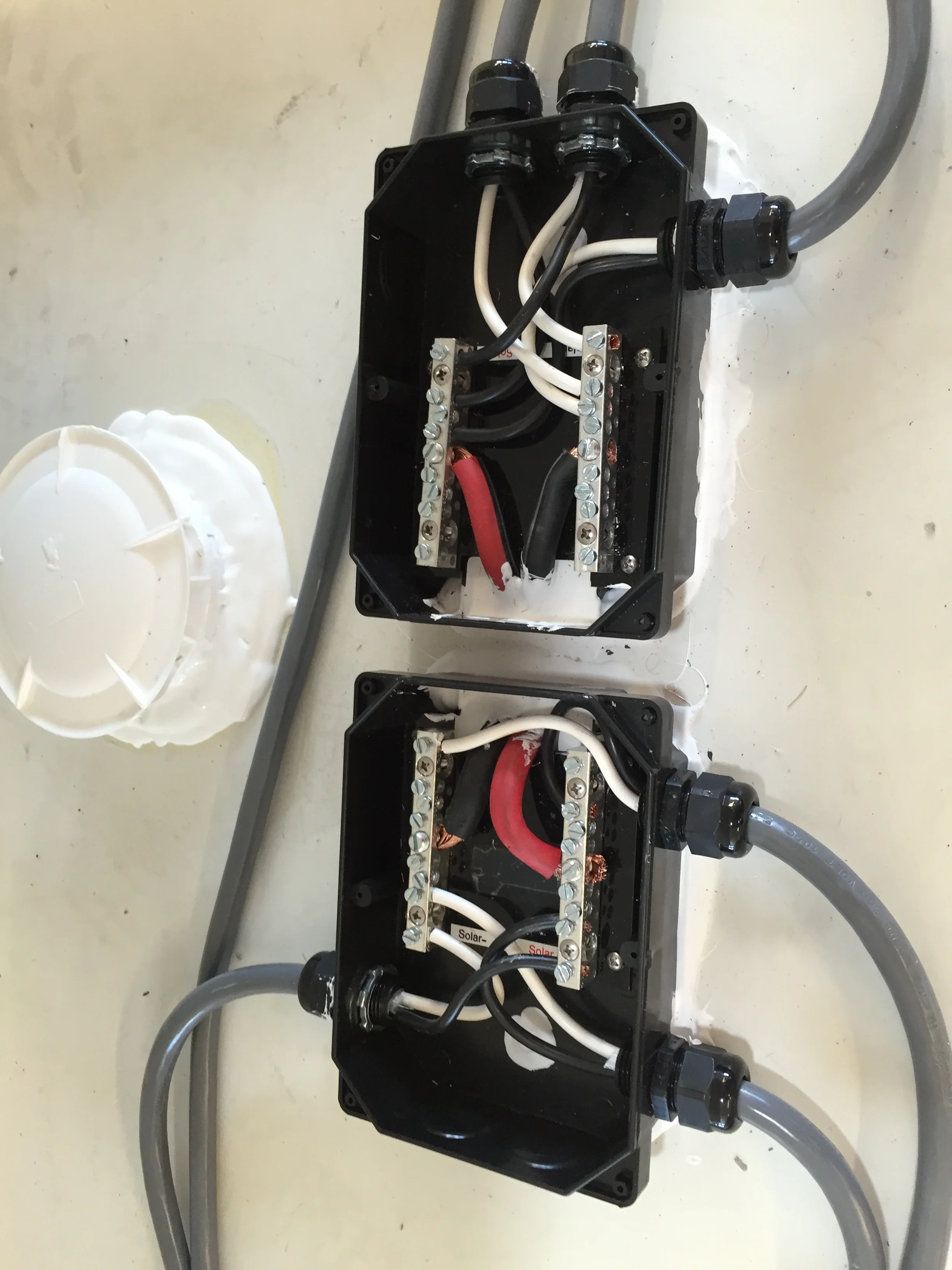

Dual Combiner Boxes
800Ah of lithium batteries

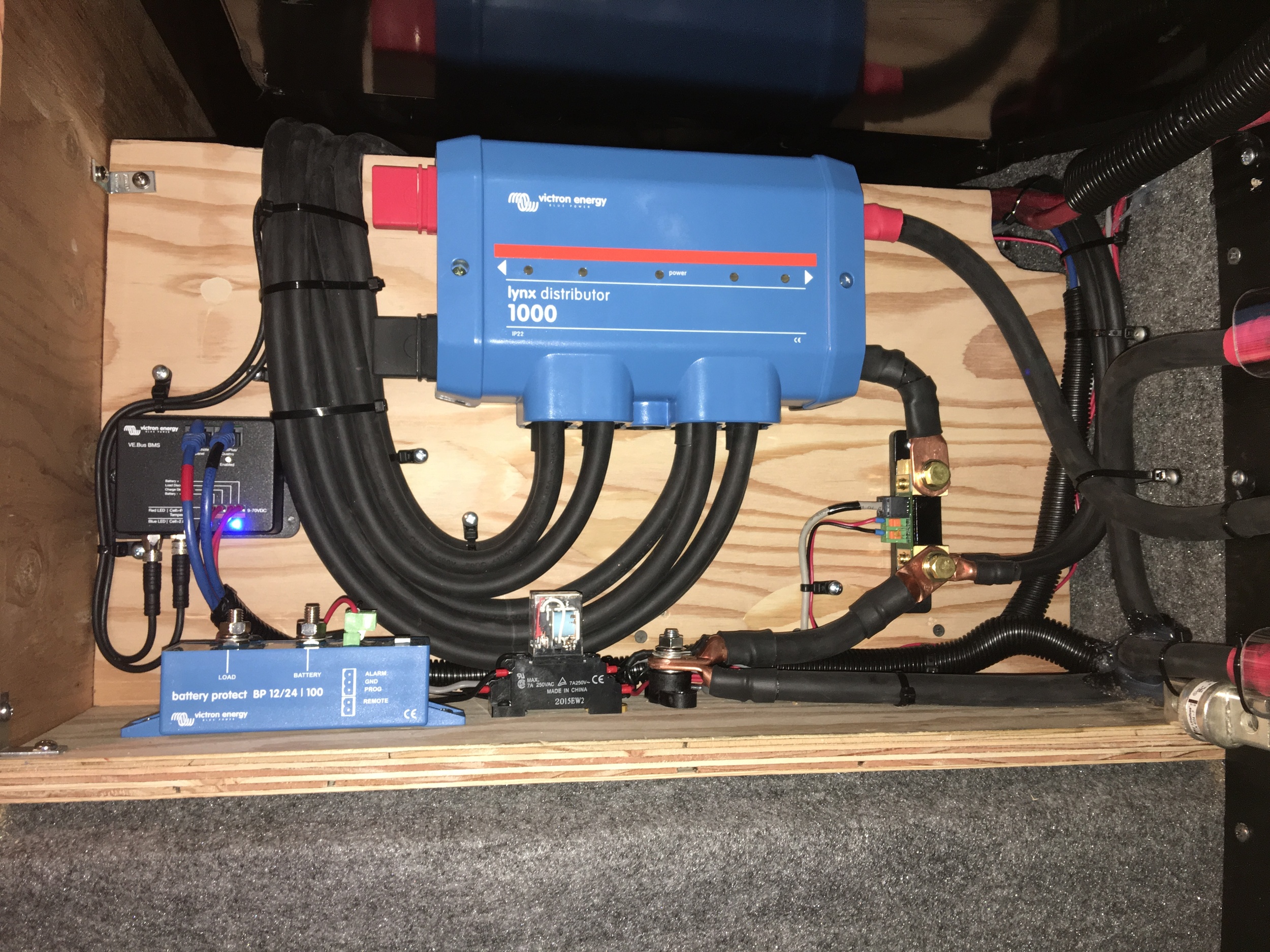

Battery Management System
