The Color Control GX provides intuitive control and monitoring for all products connected to it. The list of Victron products that can be connected is endless: Inverters, Multis, Quattros, MPPT 150/70, BMV-600 series, BMV-700 series, Skylla-i, Lynx Ion and even more.

Dimensions: H 1.2" x W 4.7" x D 5.2"

The BMV-712 is Victron's newest high precision battery monitor. The essential function of a battery monitor is to calculate ampere hours consumed and the state of charge of a battery.  Compatible with all battery types.  Built-in Bluetooth.

Monitor Dimensions: H 1.3" x W 2.4" x D 2.4"
Shunt Dimensions: H 1.4" x W 4.8" x D 1.6"

The MPPT Control lets you see the status as well as setup all BlueSolar MPPT Charge Controllers that have a VE.Direct communications port. The new MPPT Control is mounted in the familiar BMV-700 series housing, maintaining a consistent and professional look to your panels and systems monitoring equipment.

Remote monitor for programming and viewing system performance on Victron PWM Pro charge controllers.

This panel is intended both for Multiplus and Quattro inverter'/chargers. It allows PowerControl and PowerAssist current limit setting for two AC sources: a generator and shore side current for example.

Dimensions: H 1.7" x W 4.7" x D 2.6"

Using the VE.Direct to Bluetooth Smart dongle you can display your BMV, Phoenix Inverter or MPPT Controll information on iOS and Android devices, using the VictronConnect app. View information wirelessly such as battery status and solar panel power, plus other useful data.

Connects to the Victron Color Control GX monitor to provide wifi communication ability.

Stand alone battery purchases require a VE.Bus BMS, Lynx Smart BMS, or Victron SmallBMS. This battery will not function properly without one of these BMSs.

Please see note about shipping Victron batteries below.

Type:  MPPT
Current Rating:  15A
Maximum Wattage:  230W
Temp Sense:  Ambient
Display:  MPPT Control, Color Control, Built-in BlueTooth
Programming:  Preset Options

Using the latest, fastest technology, SmartSolar charge controllers maximize energy-harvest by driving current intelligently to achieve a full charge in the shortest possible time. SmartSolar charge controllers offer easy programing of charging profiles to match all battery chemistries using the VictronConnect Bluetooth app.

Type:  MPPT
Current Rating:  30A
Max Array Isc:  35A
Maximum Wattage:  450W
Temp Sense:  Ambient, Bluetooth Sensor
Display:  MPPT Control, Color Control, Built-in BlueTooth
Programming:  Preset Options, Bluetooth, MPPT Control
Dimensions: H 4.7" x W 7.4" x D 2.9"

Using the latest, fastest technology, SmartSolar charge controllers maximize energy-harvest by driving current intelligently to achieve a full charge in the shortest possible time. SmartSolar charge controllers offer easy programing of charging profiles to match all battery chemistries using the VictronConnect Bluetooth app.

Type:  MPPT
Current Rating:  50A
Max Array Isc:  60A
Maximum Wattage:  700W
Temp Sense:  Ambient, Bluetooth
Display:  MPPT Control, Color Control, Built-in Bluetooth
Programming:  Preset Options
Dimensions: H 2.9" x W 4.8" x D 7.4"

Using the latest, fastest technology, SmartSolar charge controllers maximize energy-harvest by driving current intelligently to achieve a full charge in the shortest possible time. SmartSolar charge controllers offer easy programing of charging profiles to match all battery chemistries using the VictronConnect Bluetooth app.

Type: MPPT
Current Rating: 70A
Max Array Isc: 50A
Maximum Wattage: 900W
Temp Sense: Ambient
Display: MPPT Control, Color Control, Built-in BlueTooth, Pluggable Display
Programming: Preset Options
Dimensions: H 9.84" x W 7.28" x D 3.74"
Weight: 6.6lbs

Using the latest, fastest technology, SmartSolar charge controllers maximize energy-harvest by driving current intelligently to achieve a full charge in the shortest possible time. SmartSolar charge controllers offer easy programing of charging profiles to match all battery chemistries using the VictronConnect Bluetooth app.

Type:  MPPT
Current Rating:  85A
Max Array Isc:  70A
Maximum Wattage:  1200W
Temp Sense:  Ambient
Display:  MPPT Control, Color Control, Built-in BlueTooth, Pluggable Display
Programming:  Preset Options
Dimensions: H 3.8" x W 11.6" x D 8.1"
Weight: 9.9lbs

Using the latest, fastest technology, SmartSolar charge controllers maximize energy-harvest by driving current intelligently to achieve a full charge in the shortest possible time. SmartSolar charge controllers offer easy programing of charging profiles to match all battery chemistries using the VictronConnect Bluetooth app.

Type:  MPPT
Current Rating:  100A
Max Array Isc:  70A
Maximum Wattage:  1250W (1450W series pairs)
Temp Sense:  Ambient
Display:  MPPT Control, Color Control, Built-in BlueTooth, Pluggable Display
Programming:  Preset Options

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single enclosure. Rated at 2000VA.

Note: Some Keurig coffee makers are known to be incompatible with inverters. In some cases, this will just result in a loud buzzing noise while operating, and in other cases, it will result in inverter overload and failure to operate. This doesn't mean your inverter will be damaged or that trying to use your coffee maker is dangerous; however, AM Solar cannot support compatibility issues resulting from a Keurig coffee maker. We recommend doing some research and purchasing a different coffee maker if you find yours to be incompatible with your inverter system.

Please note there is currently a nation-wide shortage of Duplex AC breakers (primarily 15/20). Our kits are designed to include these, but we may need to make substitutions due to stock level. Please email info@amsolar.com if you have any questions about this.

Steady State: 1600W
Surge: 4000W
Voltage Output: 120V AC
Voltage Input: 9.5-17V
No Load Draw: 3-9W
Waveform: Pure Sine
Frequency: 60hzCharger: 80A
Passthrough: 50A
Efficiency: 92%
Dimensions: H 19.70" x W 9.21" x D 5.75"
Extra: PowerAssist

The MultiPlus is a powerful true sine wave inverter, a sophisticated battery charger that features adaptive charge technology and a high-speed AC transfer switch in a single compact enclosure. Rated at 3000VA.

Note: Some Keurig coffee makers are known to be incompatible with inverters. In some cases, this will just result in a loud buzzing noise while operating, and in other cases, it will result in inverter overload and failure to operate. This doesn't mean your inverter will be damaged or that trying to use your coffee maker is dangerous; however, AM Solar cannot support compatibility issues resulting from a Keurig coffee maker. We recommend doing some research and purchasing a different coffee maker if you find yours to be incompatible with your inverter system.

If you have a 50A coach, we recommend looking into our MultiPlus-II 12/3000/2x 120V VE.Bus Inverter/Charger kits for 50A coaches.

Please note there is currently a nation-wide shortage of Duplex AC breakers (primarily 15/20). Our kits are designed to include these, but we may need to make substitutions due to stock level. Please email info@amsolar.com if you have any questions about this.

Steady State: 2400W
Surge: 6000W
Voltage Output: 120V AC
Voltage Input: 9.5-17V
No Load Draw: 8-20W
Waveform: Pure Sine
Frequency: 60hz
Charger: 120A
Passthrough: 50A
Efficiency: 93%
Dimensions: H 14.3" x W 10.2" x D 8.6"
Extra: PowerAssist

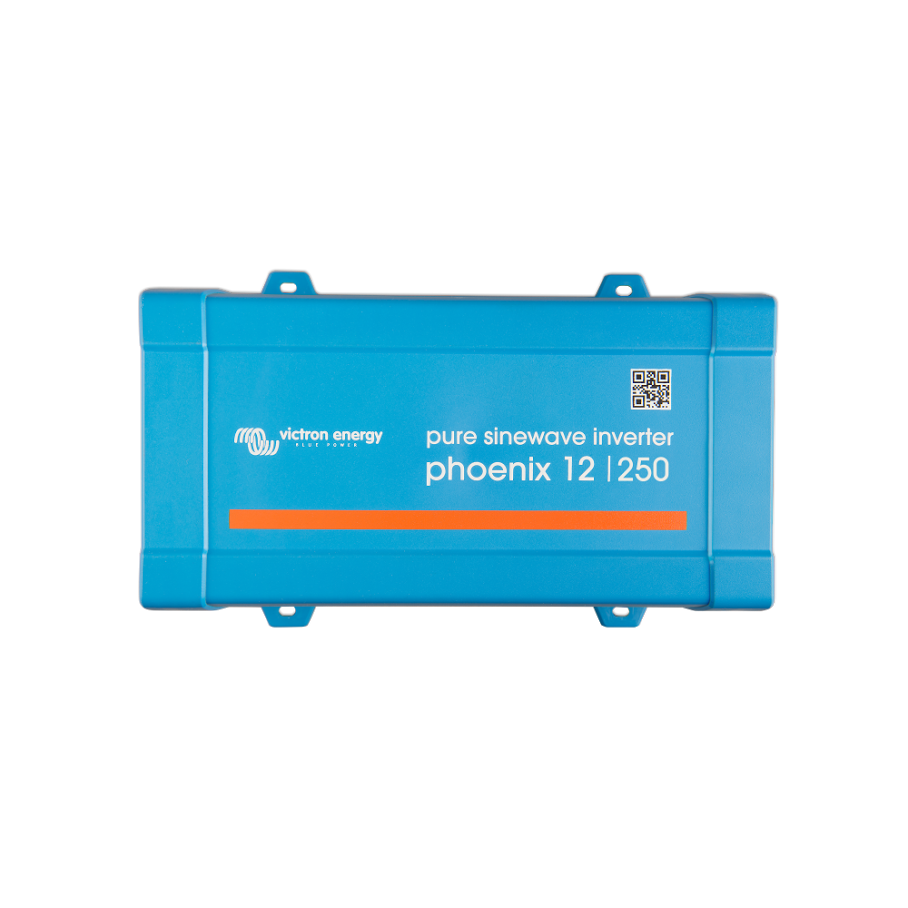

Ideal for laptops and cell phones, this 250W inverter is designed to connect to a 12V battery bank.

Steady State:  250W
15 Minute Surge:  400W
Voltage Output:  120V AC
Voltage Input:  9.2-17.0V
Waveform:  Pure Sine
Frequency:  60hz
Efficiency:  87%
Dimensions:  H 3.4" x W 6.5" x D 10.2"
Extra:  DC Outlet Connection, VE.Direct port for use with Bluetooth Dongle

A modular DC bus bar, with locations for four DC fuses. It will monitor the status of each fuse, and indicate its condition with a LED on the front. Part of the modular Lynx distribution system.  Fuses sold separately.

Dimensions: H 3.0" x W 11.3" x D 6.9"

Protect your batteries from accidental excessive discharge by installing a BP100 between your battery positive and DC distribution buss or fuse box.  For loads under 100A.

Dimensions: H 2.5” x W 6.4” x D 1.7”

The VE.Bus BMS protects each individual cell of a Victron lithium-iron-phosphate (LiFePO4 or LFP) battery.
Each individual cell of a LiFePO4 battery must be protected against over voltage, under voltage and over temperature.

Connects the BMV-712 to provide battery temperature monitoring capability.

Temperature Sensor for BlueSolar PWM-Pro charge controllers

The VE.Direct to USB interface connects products with a VE.Direct connection to devices with a USB port, for example a computer. With this cable it is also possible to connect more than two VE.Direct products to a single CCGX.

With the BlueSolar PWM-Pro to USB interface cable you can connect the BlueSolar PWM-Pro to your computer.

Allows for programming of an inverter using a PC.

This interface is used in Hub-1 systems with grid-feedback enabled. It interfaces between the VE.Bus system and one or more MPPT solar chargers with a VE.Can connection: the MPPT 150/70 and/or MPPT 150/85.

This cable is used to interface a Victron SmartSolar MPPT charge controller with a Victron lithium system BMS. It is not recommended for charge controllers with a CD port or systems where a Color Control GX, Venus GX, or Cerbo GX monitor will be used.

These Mega Fuses are commonly used inside the Victron Lynx Distributor in lithium battery systems, or in any another high DC over-current protection scenarios.
