Zamp Solar Related Products
Folding Panels
Portable panels are an excellent option for rigs with limited roof space and the Zamp folding panels are some of the best we have found. These portable panels do not have a charge controller. They are meant to be used in a "solar ready" system with an existing charge controller or integrated into an aftermarket system. We also sell the Zamp Portable Kits with a charge controller.
Wattage: 90W
Type: Monocrystalline
Open Dimensions: 42" x 22“ x 1.5”
Closed Dimension: 21" x 22“ x 3”
Weight: 27lbs
Frame: Folding, Silver Anodized Aluminum
Connection Type: 15' Zamp cable
Portable panels are an excellent option for rigs with limited roof space and the Zamp folding panels are some of the best we have found. These portable panels do not have a charge controller. They are meant to be used in a "solar ready" system with an existing charge controller or integrated into an aftermarket system. We also sell the Zamp Portable Kits with a charge controller.
Wattage: 140W
Type: Monocrystalline
Open Dimensions: 41" x 35“ x 1.5”
Closed Dimension: 21" x 35“ x 3”
Weight: 33lbs
Frame: Folding, Silver Anodized Aluminum
Connection Type: 15' Zamp cable
Portable panels are an excellent option for rigs with limited roof space and the Zamp folding panels are some of the best we have found. These portable panels do not have a charge controller. They are meant to be used in a "solar ready" system with an existing charge controller or integrated into an aftermarket system. We also sell the Zamp Portable Kits with a charge controller.
Wattage: 180W
Type: Monocrystalline
Open Dimensions: 40" x 39.5“ x 1.5”
Closed Dimension: 20" x 39.5“ x 3”
Weight: 34.35lbs
Frame: Folding, Silver Anodized Aluminum
Connection Type: 15' Zamp cable
Portable panels are an excellent option for rigs with limited roof space and the Zamp folding panels are some of the best we have found. These portable panels do not have a charge controller. They are meant to be used in a "solar ready" system with an existing charge controller or integrated into an aftermarket system. We also sell the Zamp Portable Kits with a charge controller.
Wattage: 230W
Type: Monocrystalline
Open Dimensions: 54" x 40“ x 1.5”
Closed Dimension: 27" x 40“ x 3”
Weight: 47lbs
Frame: Folding, Silver Anodized Aluminum
Connection Type: 15' Zamp cable
Solar Panels
Solar Panel Kits with Mounting Hardware and Wire Harness
Designed for narrow spaces using 6" cells, this panel is ideal for small systems. Made in Bend, Oregon, United States.
Wattage: 90W
Type: Monocrystalline
Operating Voltage (Vmp): 18.0V
Open Circuit Voltage (Voc): 23.8V
Operating Current (Imp): 5.0A
Short Circuit Current (Isc): 5.4A
Size: 39.6" x 19.9" x 1.38" 14.3lbs
Frame: Black Anodized Aluminum
Using 6" monocrystalline cells, this panel is ideal for large systems where there is ample roof space. Made in Bend, Oregon, United States Flash tested at 184W +/- 3%
Wattage: 170W
Type: Monocrystalline
Operating Voltage (Vmpp): 18.0V
Open Circuit Voltage (Voc): 23.8V
Operating Current (Impp): 9.30A
Short Circuit Current (Isc): 9.4A
Size: 58.3" x 26.4" x 1.38" 26.5lbs
Frame: Silver Anodized Aluminum
Mounting Components
This hardware kit includes the special bolts and retainers needed to interface with Zamp panel frames for attaching them to AM Solar Mount kits. For use with Zamp Solar USA built Omni-rail panels only

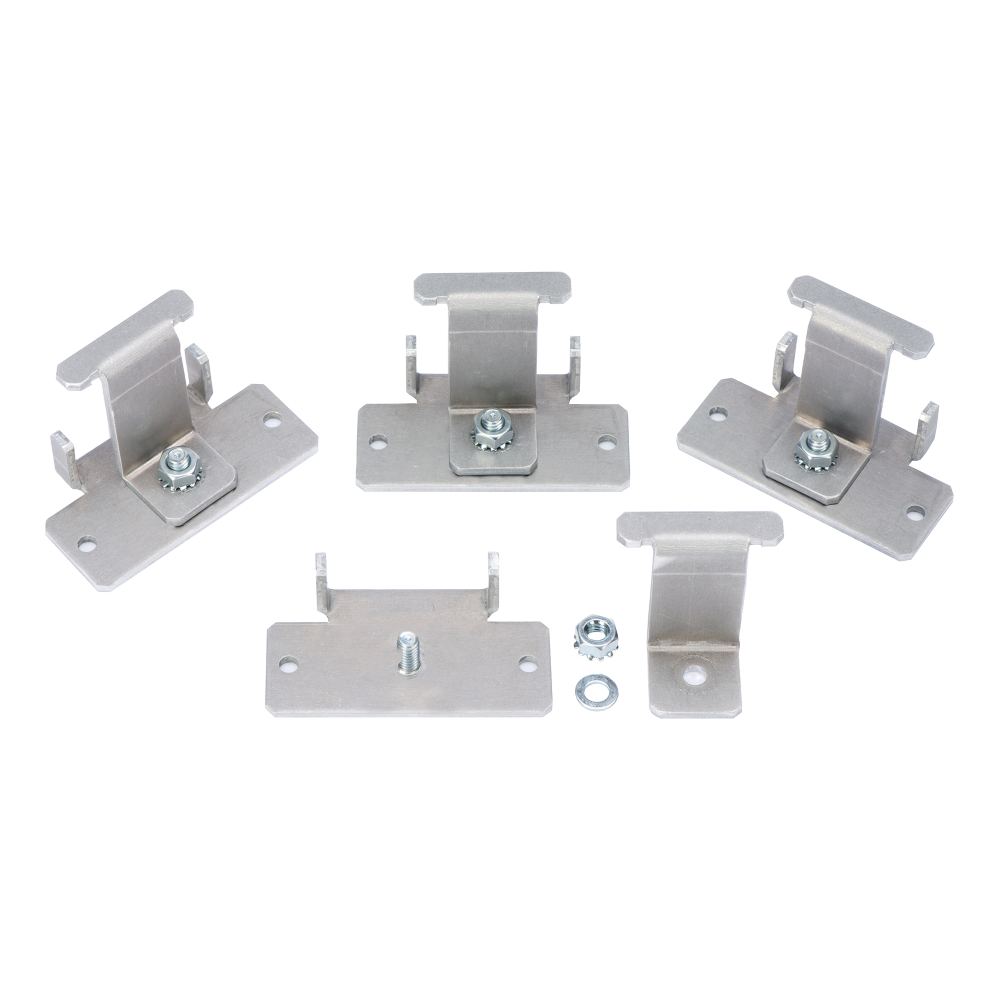

This mount set is designed for use with our AMS Essential kits or Zamp Solar panels. This mount set will not allow tilting. Made of corrosion resistant stainless steel.
For use with the 35mm (1.38") frame of Zamp Legacy solar panels. Made of corrosion resistant stainless steel.
Cables & Connectors
Splice this connector onto solar panel leads or the AM Solar roof cable. The connector is compatible with Zamp pre-wire systems.
Ideal for adding a mobile panel. This port attached to the external wall or roof of an RV and is compatible with Zamp connectors.
Splice this connector onto the battery side of factory pre-wire leads or the AM Solar roof cable. The connector is compatible with Zamp equipment.
Zamp two to one combiner cable adapter. This is a parallel connector (amperage increases, voltage maintains).
